Component Inspection
- Measure the FTPS output voltage using the diagnostic tool.
Specification: Refer to "SPECIFICATION "
- Removal
- Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
- Turn the ignition switch OFF and disconnect the battery (-) terminal.
- Remove the rear seat assembly.
(Refer to Body (Interior and Exterior) - "REAR SEAT ASSEMBLY REPAIR PROCEDURES ")
- Remove the luggage side trim.
(Refer to Body (Interior and Exterior) - "LUGGAGE SIDE TRIM REPAIR PROCEDURES ")

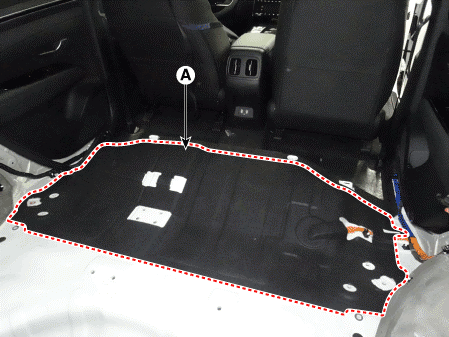

- Remove the rear floor carpet (A).

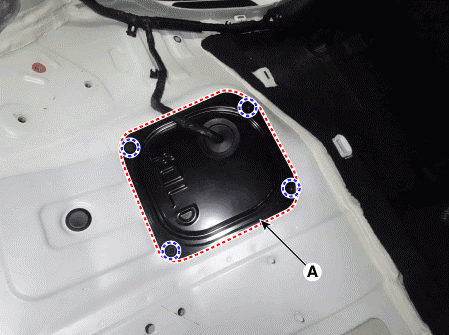

- Remove the fuel pump service cover (A) after loosening the screw.

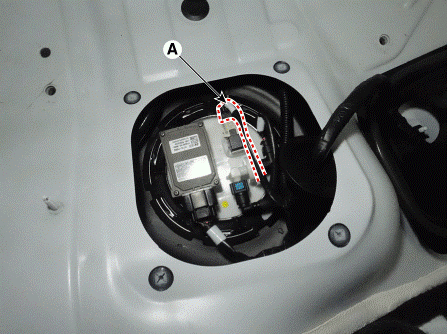

- Disconnect the fuel tank pressure sensor connector (A).

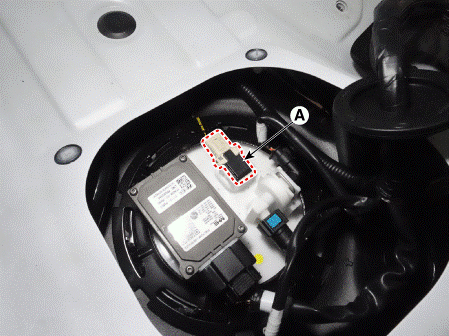

- Remove the fuel tank pressure sensor (A) after releasing the hooks vertically.
