Repair Procedures: Removal
- Turn the ignition switch OFF, and then disconnect the battery negative (-) terminal.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - " AIR CLEANER REPAIR PROCEDURES ")
- Remove the turbocharger inlet pipe.
(Refer to Engine Mechanical System - " TURBOCHARGER & EXHAUST MANIFOLD REPAIR PROCEDURES ")

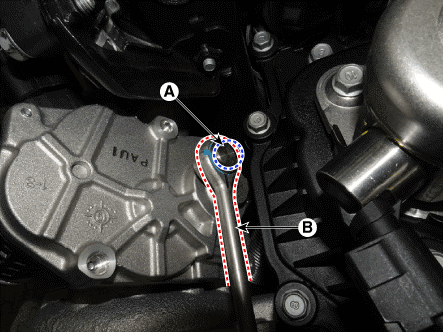

- Remove the C-ring (A), and then removing the shaft link assembly (B).

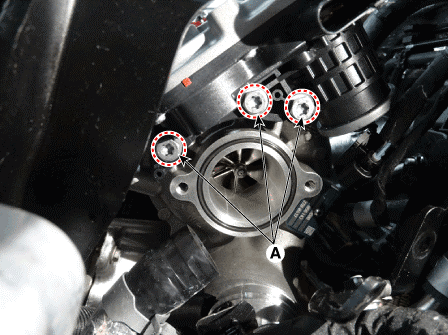

- Remove the EWGA after loosening the mounting bolt (A).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
CAUTION:- When carrying the turbocharger, do not hold the rod of the turbo charge to prevent bending the rod.
