2022 Hyundai Tucson Plug-In Hybrid LimitedFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
- Turn the ignition switch OFF, and disconnect the battery negative (-) terminal.
- Remove the EGR cooler.
(Refer to Engine Mechanical System - " EGR COOLER ")

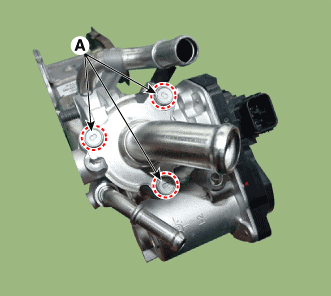

- Remove the EEGR control valve after loosening the mounting bolt (A).
Tightening Torque:
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.3 lb-ft)
