2022 Hyundai Tucson Plug-In Hybrid LimitedFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
CAUTION:
- Be careful not to damage the parts located under the vehicle (floor under cover, canister, fuel tank) when raising the vehicle using the lift.
(Refer to General Information - " LIFT AND SUPPORT POINTS ")
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Lift up the vehicle.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER ")

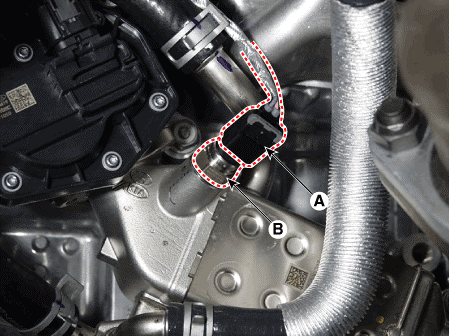

- Disconnect the gets connector (A).
- Remove the EGR temperature sensor (B).
Tightening torque:
29.4 - 39.2 N.m (3.0 - 4.0 kgf.m, 21.7 - 28.9 lb-ft)
