2022 Hyundai Tucson Plug-In Hybrid LimitedFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
CAUTION:
- Be careful not to damage the parts located under the vehicle (floor under cover, canister, fuel tank) when raising the vehicle using the lift.
(Refer to General Information - " LIFT AND SUPPORT POINTS ")
- Turn the ignition switch OFF, and then disconnect the battery negative (-) terminal.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - " ENGINE ROOM UNDER COVER ")

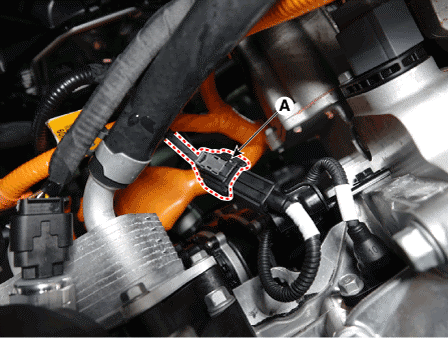

- Disconnect the crankshaft position sensor connector (A).

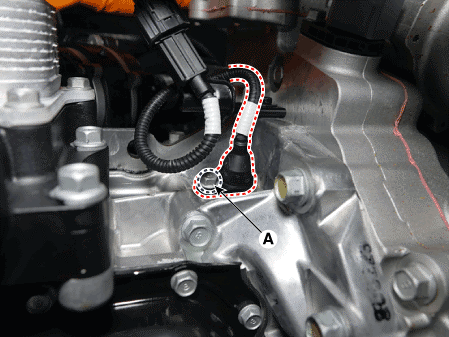

- Remove the sensor after loosening the mounting bolt (A).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
