2017 Hyundai Santa Fe XL UltimateFACTORY OEM SERVICE PROCEDURE
Antenna Status Check
- Connect the cable of GDS to the data link connector in driver side crash pad lower panel.

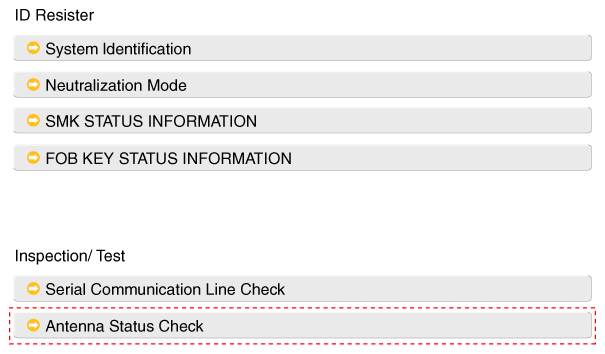

- Select the "Antenna Status Check".

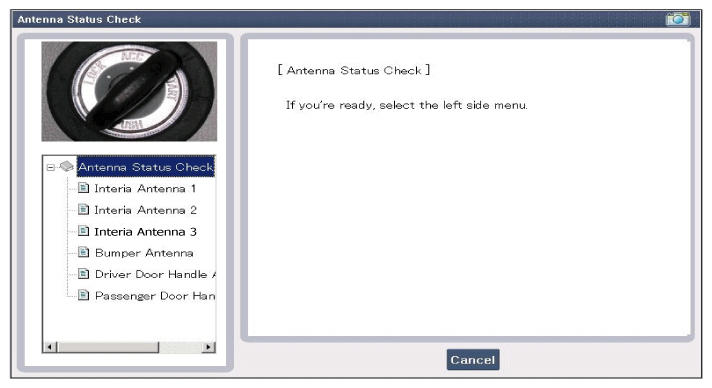

- After IG ON, select the "Antenna Status Check".

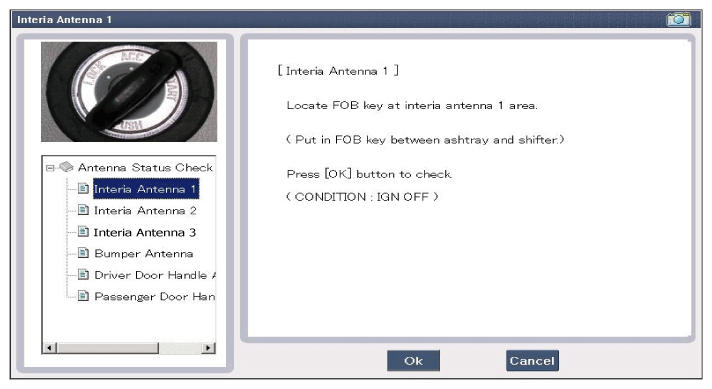

- Set the smart key near the related antenna and operate it with a GDS.

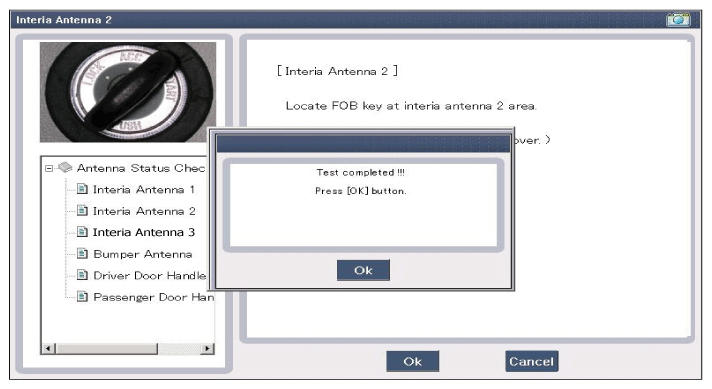

- If the smart key runs normal, the related antenna, smart key (transmission, reception) and exterior receiver are normal.
- Antenna status
- INTERIOR Antenna 1
- INTERIOR Antenna 2
- INTERIOR Antenna 3
- BUMPER/Trunk Antenna
- DRV_DR Antenna
- AST_DR Antenna
