2017 Hyundai Santa Fe XL UltimateFACTORY OEM SERVICE PROCEDURE
Multi-View Camera Unit

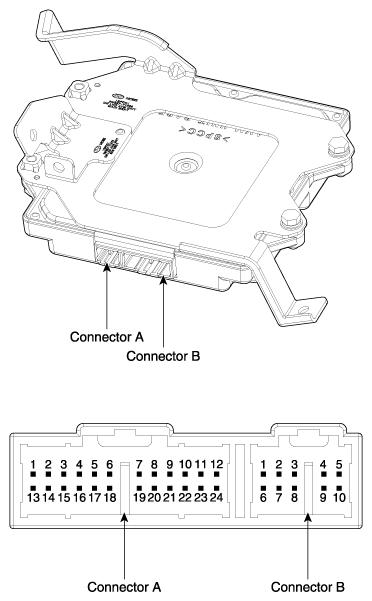

PIN IDENTIFICATIONCHART
| No | Connector A | No | Connector B |
|---|---|---|---|
| 1 | Front camera - Power | 1 | Switch indicator |
| 2 | Front camera - GND | 2 | Chassis CAN low |
| 3 | Right camera - Power | 3 | - |
| 4 | Right camera - GND | 4 | IGN2 |
| 5 | Front camera - video input | 5 | ACC |
| 6 | Front camera - video GND | 6 | Multi-View Camera switch |
| 7 | Right camera - video input | 7 | Chassis CAN high |
| 8 | Right camera - video GND | 8 | GND |
| 9 | Multi-View Camera video output Y | 9 | - |
| 10 | Multi-View Camera video output C | 10 | - |
| 11 | - | ||
| 12 | - | ||
| 13 | Rear camera - Power | ||
| 14 | Rear camera - GND | ||
| 15 | Left camera - Power | ||
| 16 | Left camera - GND | ||
| 17 | Rear camera - video input | ||
| 18 | Rear camera - video GND | ||
| 19 | Left camera - video input | ||
| 20 | Left camera - video GND | ||
| 21 | Multi-View Camera video GND Y | ||
| 22 | Multi-View Camera video GND C | ||
| 23 | - | ||
| 24 | - | ||
