2017 Hyundai Santa Fe SE Ultimate, AWDFACTORY OEM SERVICE PROCEDURE

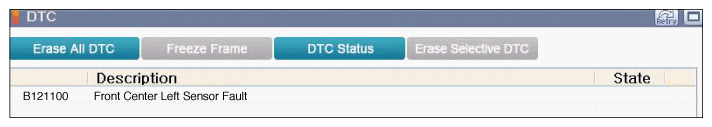

GDS Data Analysis
- Connect GDS.
- IG "ON" and engine "OFF".
- Select DTC Analysis mode.
- After erase DTC, keep the vehicle condition within the enable conditions (Refer to "DTC DETECTING CONDITION " table).
- Is the same DTC occurred again?
YES
- Go to next procedure.
NO
- Fault is intermittent caused by poor contact in the sensor's and/or BCM [PAS (Parking Assist System)]'s connector. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
