On-Vehicle Inspection

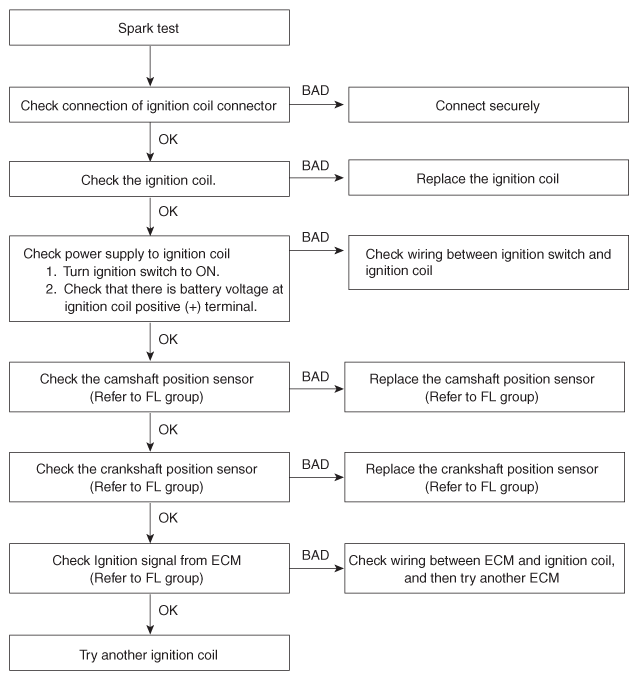

Spark Test
- Remove the ignition coils.
(Refer to Ignition System - "Ignition Coil ")
- Using a spark plug socket, remove the spark plug.
- Install the spark plug to the ignition coil.
- Ground the spark plug to the engine.
- Check if spark occurs while engine is being cranked.NOTE: To prevent fuel being injected from injectors while the engine is being cranked, disconnect the injector connector.
Crank the engine for no more than 5 ~ 10 seconds. - Inspect all the spark plugs.
- Using a spark plug socket, install the spark plug.
- Install the ignition coil.
- Reconnect the ignition coil connector.
