2017 Hyundai Azera BaseFACTORY OEM SERVICE PROCEDURE
Smart Key Code Saving
- Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

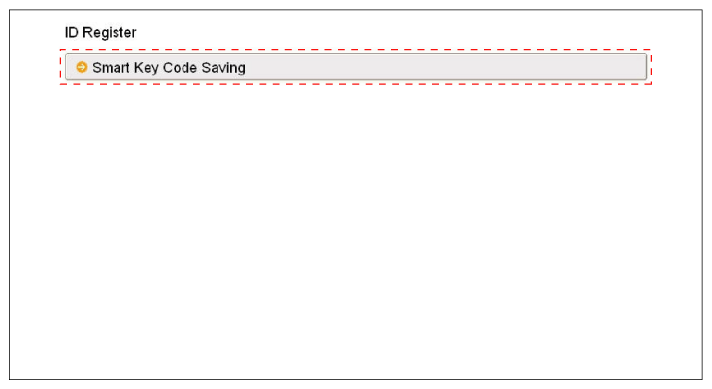

- Select the vehicle model and then do "Smart key code saving".

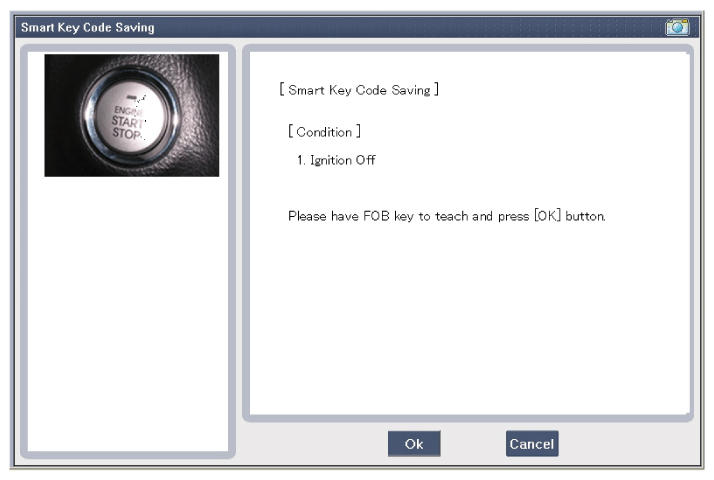

- After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.
- After pushing the SSB with the teaching key, press "OK" button.

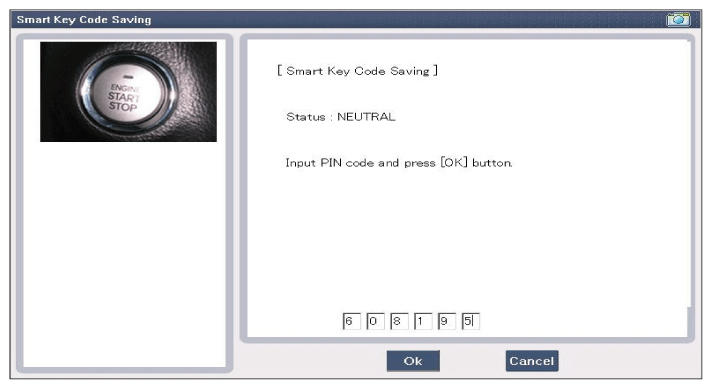

- Input the "Pin code" for first key teaching.
