2017 Hyundai Azera BaseFACTORY OEM SERVICE PROCEDURE

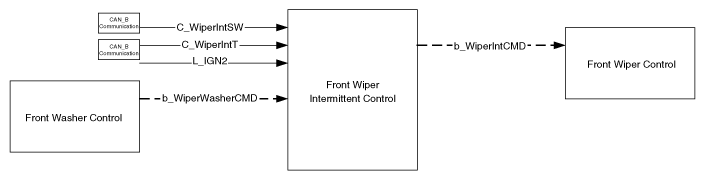

Front Wiper Intermittent Control
| Function | Characteristics | Name | |
|---|---|---|---|
| Signal Label | Spec. Designation | ||
| Input | Logic | L_IGN2 | Ignition 2 Signal |
| CAN_B Communication | C_WiperIntSW | Wiper Intmt Switch from MFSW | |
| C_WiperIntT | Wiper Intmt T Value from MFSW | ||
| Internal | b_WiperWasherCMD | Front Wiper Washer Control Command | |
| Output | Internal | b_WiperIntCMD | Wiper Intermittent Output Command |
