2017 Hyundai Azera BaseFACTORY OEM SERVICE PROCEDURE

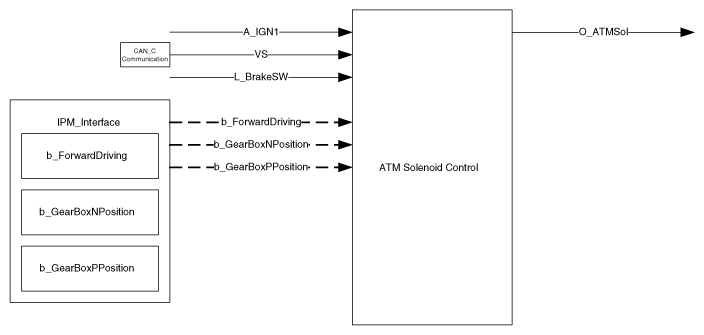

ATM Solenoid Control
| Function | Characteristics | Name | |
|---|---|---|---|
| Signal Label | Spec. Designation | ||
| Input | Logic | L_BrakeSW | Brake Switch |
| Analog | A_IGN1 | Ignition 1 Signal | |
| CAN_C Communication | VS | Vehicle Speed Signal | |
| Internal | b_ForwardDriving | Shift Lever Position during Forward Driving | |
| b_GearBoxNPosition | Gear Shift Lever N Position Input | ||
| b_GearBoxPPosition | Gear Shift Lever P Position Input | ||
| Output | Logic | O_ATMSol | ATM Solenoid Output |
