2014 Hyundai Veloster Base, Standard TransFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the battery and the battery tray.
(Refer to "BATTERY ")
Remove the under cover.
Drain the coolant.
(Refer to "COOLANT ")
Remove the drain plug (A) and reinstall the drain plug after draining ATF totally.
Tightening torque:

38.2 ~ 48.1 N.m (3.9 ~ 4.9 kgf.m, 28.2 ~ 35.4 lb-ft)

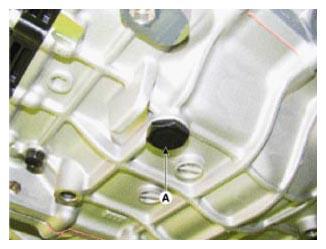

Fig 1: Identifying Drain Plug
Courtesy of HYUNDAI MOTOR AMERICA
