Control Circuit Inspection
- IG KEY "OFF".
- Disconnect PCSV connector.
- IG KEY "ON" & ENG "OFF"

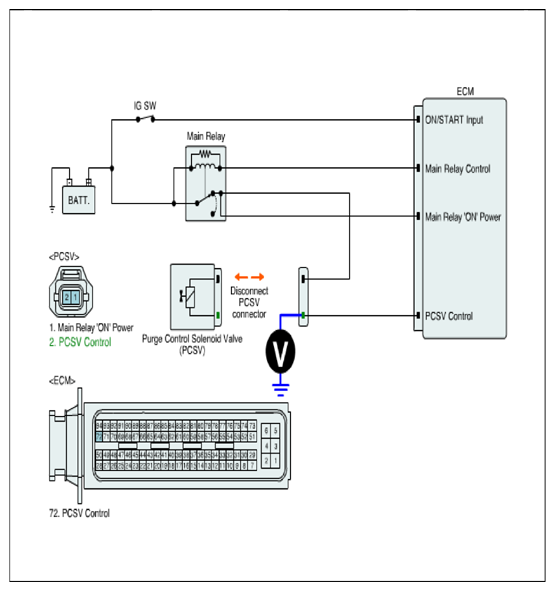

- Measure the voltage between control terminal of PCSV harness connector and chassis ground.
Specification: Approx 3.5V
- Is the measured voltage within specification?
YES
Go to "COMPONENT INSPECTION " procedure.
NO
Repair Open circuit and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
