Component Inspection
- Ignition "OFF".
- Disconnect injectors.
- Check clog on injectors.

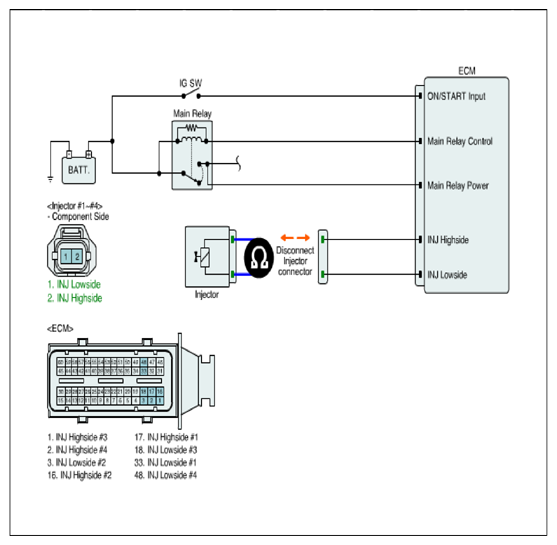

- Measure the resistance between power and control terminal of injectors (Component side).TEMPERATURE RESISTANCE SPECIFICATION
Coil Resistance (Ω) Temp (°C) Temp (°F) 1.25 20 68 - Is the measured resistance within specifications?
YESÂ
Many malfunctions in the electrical system are caused by poor harness (es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage. So, check poor connections and the related circuit between ECM and component thoroughly. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIRÂ " procedure.
NOÂ
Substitute with a known - good injector and check for proper operation. If the problem is corrected, replace injector and go to "VERIFICATION OF VEHICLE REPAIRÂ " procedure.
