Power Circuit Inspection
- Check voltage
- IG "OFF" & Disconnect HO2S (S2) connector.
- IG "ON".

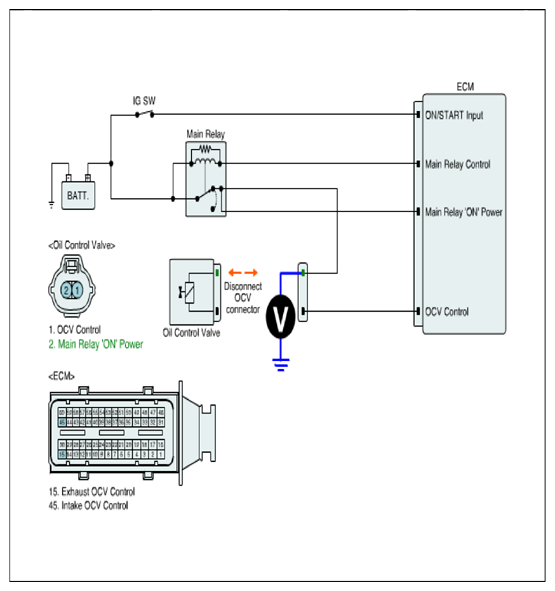

- Measure voltage between power terminal of the OCV harness connector and chassis ground.
Specification: B+
- Is the measured voltage within specification?
YES
Go to "CONTROL CIRCUIT INSPECTION " procedure.
NO
Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
