2014 Hyundai Veloster Base, Standard Trans

Repair procedures: Removal

2014 Hyundai Veloster Base, Standard TransSECTION Removal

NOTE: When replacing the ECM, the vehicle equipped with immobilizer must be performed the procedure as below.

[In the case of installing used ECM]

Perform "Neutral mode" procedure with GDS. (Refer to "IMMOBILIZER SYSTEM ").
Insert the key and turn it to the IGN ON and OFF position.

Then the ECM key register process is completed automatically.

[In the case of installing new ECM]

Insert the key and turn it to the IGN ON and OFF position.

Then the ECM key register process is completed automatically.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Disconnect the ECM Connector (A).

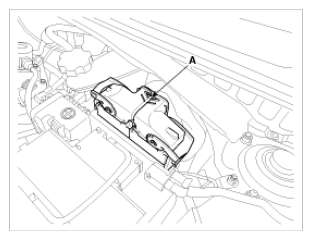

Fig 1: ECM Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the battery (Refer to "REPAIR PROCEDURES ").
Remove the mounting bolts and nut, and then remove the ECM bracket assembly (A).

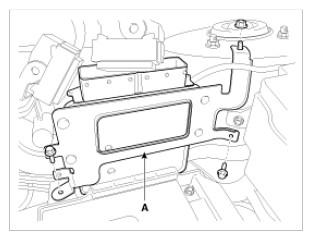

Fig 2: ECM Bracket Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Remove the ECM (B) after removing 4 nuts (A) from the bracket.

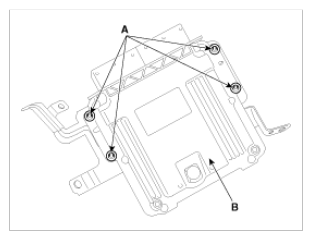

Fig 3: ECM & Mounting Nuts
Courtesy of HYUNDAI MOTOR AMERICA
