2014 Hyundai Veloster Base, Standard TransFACTORY OEM SERVICE PROCEDURE
Repair procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the resonator and the air intake hose (Refer to "INTAKE SYSTEM & EXHAUST SYSTEM - NON-TURBO ").

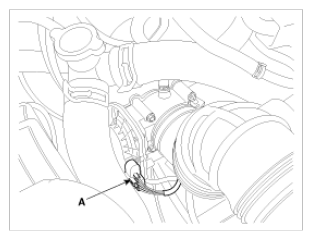

- Disconnect the ETC module connector (A).

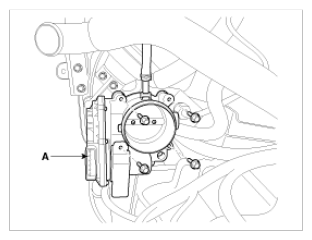

- Remove the installation bolts, and then remove the ETC module (A) from the engine.
