2014 Hyundai Veloster Base, Standard TransFACTORY OEM SERVICE PROCEDURE
Repair procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Disconnect the CVVT oil control valve connector (A).
- Remove the installation bolt (B), and then remove the valve from the engine.

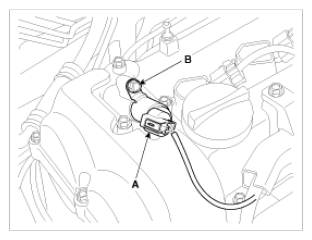

[Bank 1/Intake]

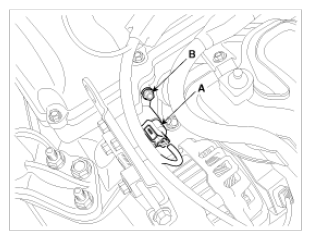

[Bank 1/Exhaust]
