Repair Procedures: Removal
- Turn ignition switch OFF.

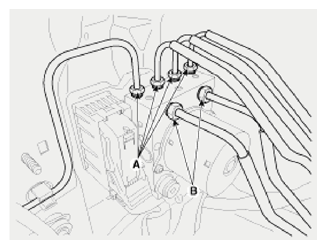

- Disconnect the brake tubes from the HECU by unlocking the nuts counterclockwise with a spanner.
Tightening torque:
- 12.7 ~ 16.7 N.m (1.3 ~ 1.7 kgf.m, 9.4 ~ 12.3 lb-ft)
- 18.6 ~ 22.6 N.m (1.9 ~ 2.3 kgf.m, 13.7 ~ 16.6 lb-ft)

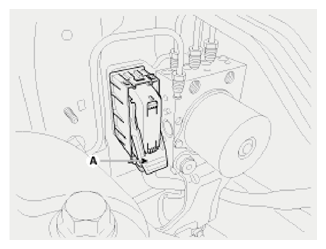

- Pull up the lock of the HECU connector (A), and then disconnect the connector.

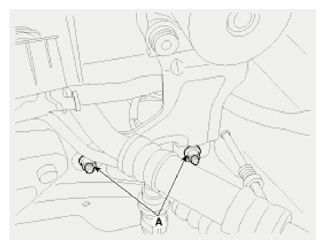

- Loosen the HECU bracket nuts (A), then remove HECU and bracket.
Tightening torque:
16.7 ~ 25.5 N.m (1.7 ~ 2.6 kgf.m, 12.3 ~ 18.8 lb-ft)
