2014 Hyundai Veloster Base, Standard TransFACTORY OEM SERVICE PROCEDURE
Monitor DTC Status

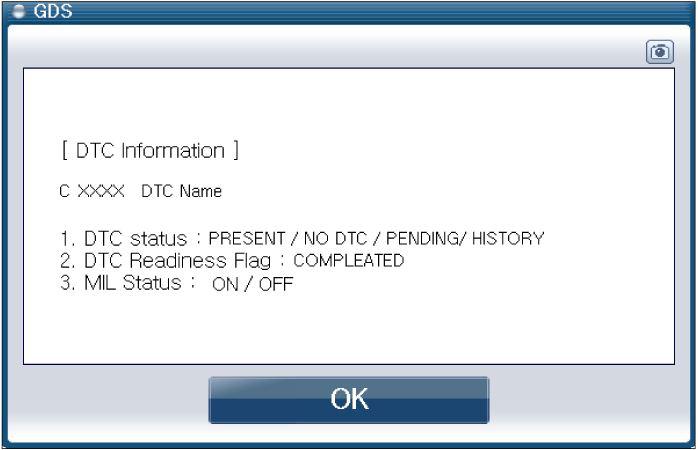

- Connect GDS and select "Diagnostic Trouble Codes (DTC)" mode.
- Confirm that "DTC Readiness Flag" indicates "COMPLETED". If not, drive the vehicle within conditions noted in the freeze frame data or enable conditions.
- Read "DTC Status" parameter in DTC menu of the GDS.
- Is parameter displayed "History (Not Present) fault"?
YES
- Fault is intermittent caused by poor connection in wheel speed sensor harness, was repaired and HECU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "MONITOR GDS DATA " procedure.
