Repair Procedures: Replacement
- When removing and installing the fender, an assistant is necessary.
- Be careful not to damage the fender and body.
- When removing the clips, use a clip remover.
- Remove the front bumper cover.
(Refer to "FRONT BUMPER ")
- Remove the head lamps.
(Refer to "HEAD LAMPS ")
- Loosen the mud guard (A) mounting screws and clips.

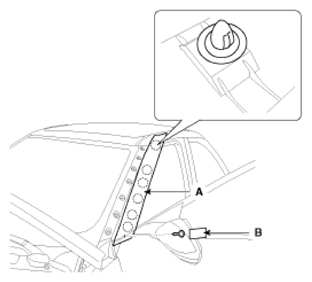

- To remove the A pillar garnish (A), loosen the mounting screw after removing the cap (B).
Tightening torque:
0.5 ~ 1.0 N.m (0.05 ~ 0.1 kgf.m, 0.4 ~ 0.7 lb-ft)
- Detach the clip and then remove the fender side cover (A).
- Detach the clips and then remove the insulator pad (A).
- After loosening the mounting screws and bolt, then remove the front bumper side mounting bracket (A).
- After loosening the mounting bolts and nut, then remove the fender (A).
- Installation is the reverse of removal.
