2014 Hyundai Veloster Base, Standard TransFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Inspection

  1. Check the audio remote control switch (A) for resistance between connector terminals in each switch position.

    [LH-AUDIO]

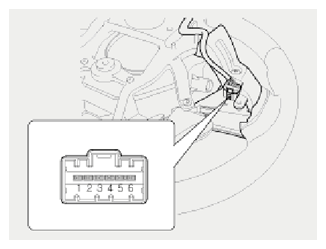

    Fig 1: Identifying Audio Remote Control Switch (LH-Audio)
    G09134421Courtesy of HYUNDAI MOTOR AMERICA

    [RH-TRIP]

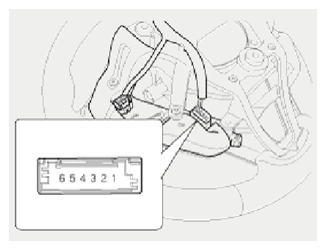

    Fig 2: Identifying Audio Remote Control Switch (LH-Trip)
    G09134422Courtesy of HYUNDAI MOTOR AMERICA
    CONNECTOR TERMINAL SPECIFICATION (AUDIO)

    Switch Connector terminal Resistance
    (±5%)
    Seek up 3-5 430 Ω
    Seek down 3-5 1.11 kΩ
    Mode 3-5 2.11 kΩ
    Volume up 3-5 4.61 kΩ
    Volume down 3-5 6.81 kΩ
    CONNECTOR TERMINAL SPECIFICATION (CRUISE)

    Switch Connector terminal Resistance
    (±5%)
    ON/OFF 3-4 880 Ω
    Cancel 3-4 180 Ω
    SET - 3-4 330 Ω
    SET + 3-4 550 Ω
    CONNECTOR TERMINAL SPECIFICATION (BLUETOOTH + VOICE)

    Switch Connector terminal Resistance
    (±5%)
    Voice 3-4 10.71 kΩ
    End of call 3-4 18.91 kΩ
    Send 3-4 40.91 kΩ
    CONNECTOR TERMINAL SPECIFICATION (TRIP + RESET)

    Switch Connector terminal Resistance
    (±5%)
    Trip 3-4 2.54 kΩ
    Reset 3-4 5.54 kΩ
