2014 Hyundai Equus SignatureFACTORY OEM SERVICE PROCEDURE

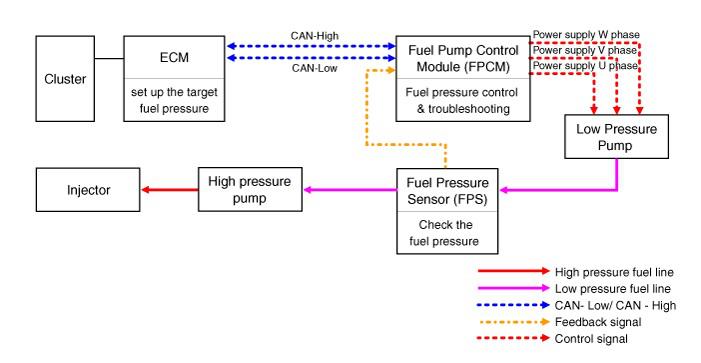

Description And Operation: Operation
- The ECM receives the target fuel pressure signal through CAN communication with the FPCM.
- The FPS applies the current low fuel pressure value to the FPCM
- The FPCM controls the 3-phase duty function of the low pressure fuel pump
- The FPS applies the current low fuel pressure value to the FPCM.
- It controls the low pressure fuel pump based on the RPM and vehicle load to provide a consistent flow rate.
