2014 Hyundai Azera Limited
Smart Key Code Saving
2014 Hyundai Azera LimitedSECTION Smart Key Code Saving

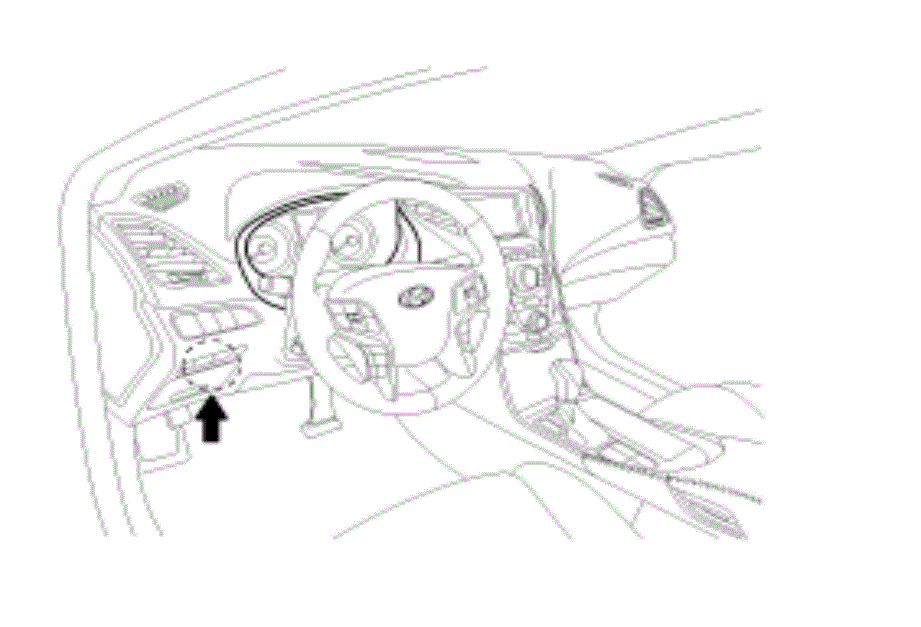

- Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

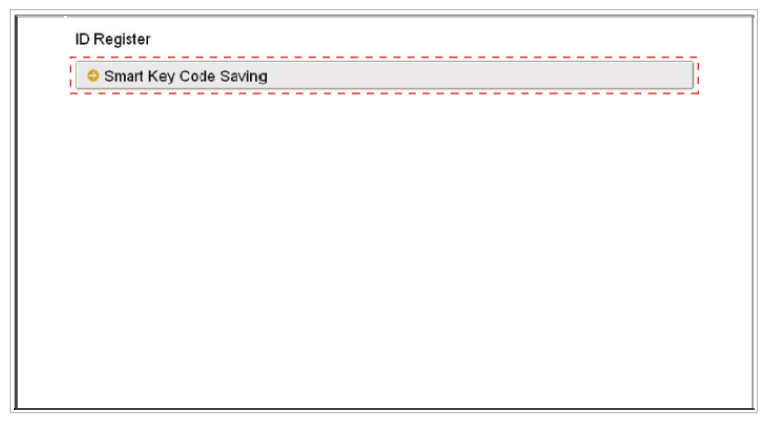

- Select the vehicle model and then do "Smart key code saving".
- After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown in illustration below.

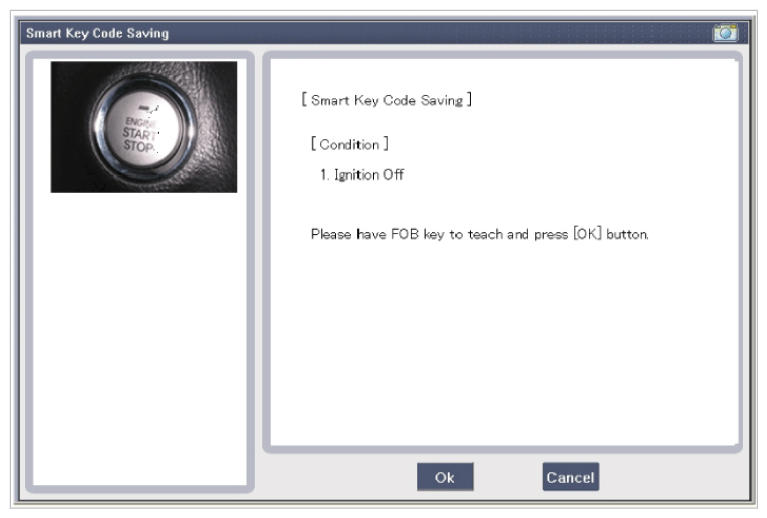

- After pushing the SSB with the teaching key, press "OK" button.

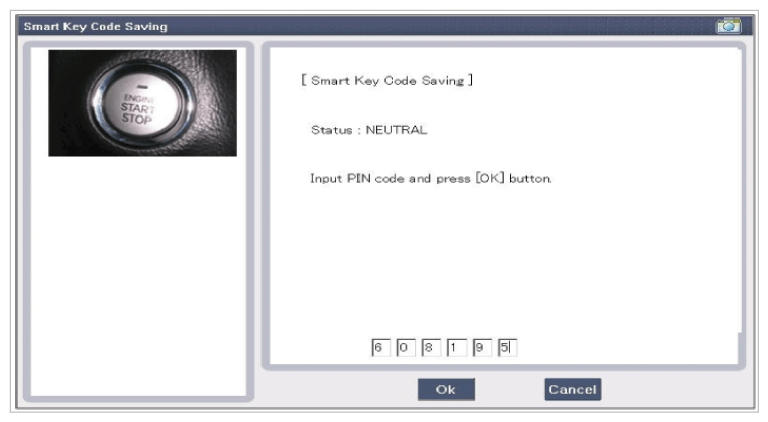

- Input the "Pin code" for first key teaching.
