2014 Hyundai Azera Limited
Smart Key Unit
2014 Hyundai Azera LimitedSECTION Smart Key Unit
- Disconnect the negative (-) battery terminal.
- Remove the accelerator pedal module. (Refer to "ACCELERATOR PEDAL ")

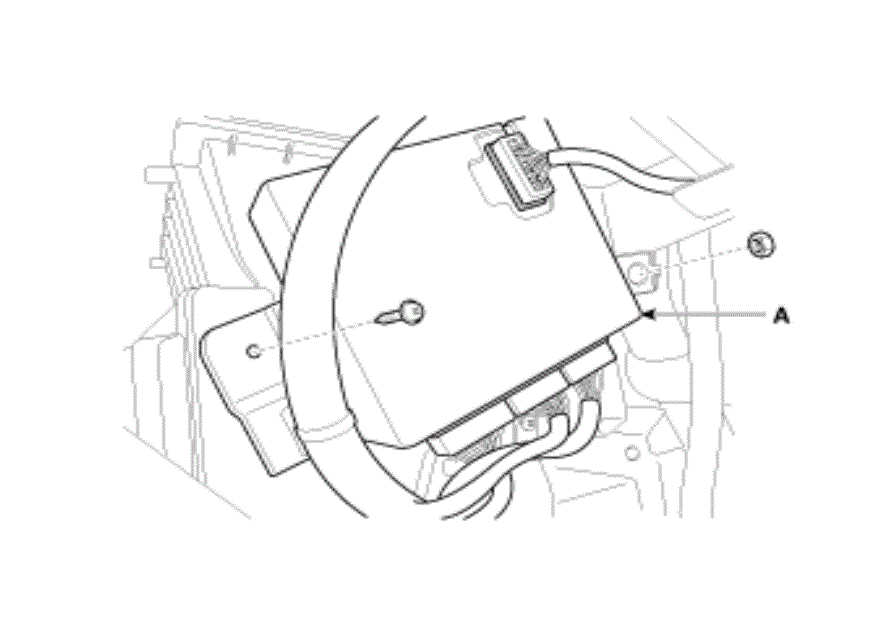

- Disconnect the smart key unit connector, and then remove the bracket and smart key unit (A) after loosening the screw and nut.
