HOMESERVICE MANUALSHYUNDAI2014AZERA BASEREPAIR AND DIAGNOSISTRANSMISSIONAUTOMATIC TRANSAUTOMATIC TRANSAXLE CONTROL SYSTEMTRANSAXLE CONTROL MODULE (TCM)REPAIR PROCEDURESREPLACEMENT
2014 Hyundai Azera Base
Repair Procedures: Replacement
2014 Hyundai Azera BaseSECTION Replacement
- Turn ignition switch OFF.
- Disconnect the negative (-) battery cable.

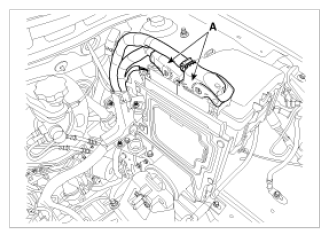

- Disconnect the TCM connector (A).

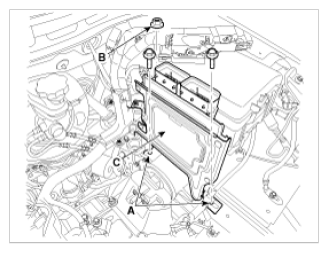

- Remove the Transaxle Control Module (TCM) (C) after removing the mounting bolts (A) and nut (B).
TCM installation bolt/nut:
9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)
