Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Disconnect the variable intake solenoid valve connector (A).
- Disconnect the vacuum hoses (B, C) from the valve.
- Remove the installation nut (D), and then remove the valve.

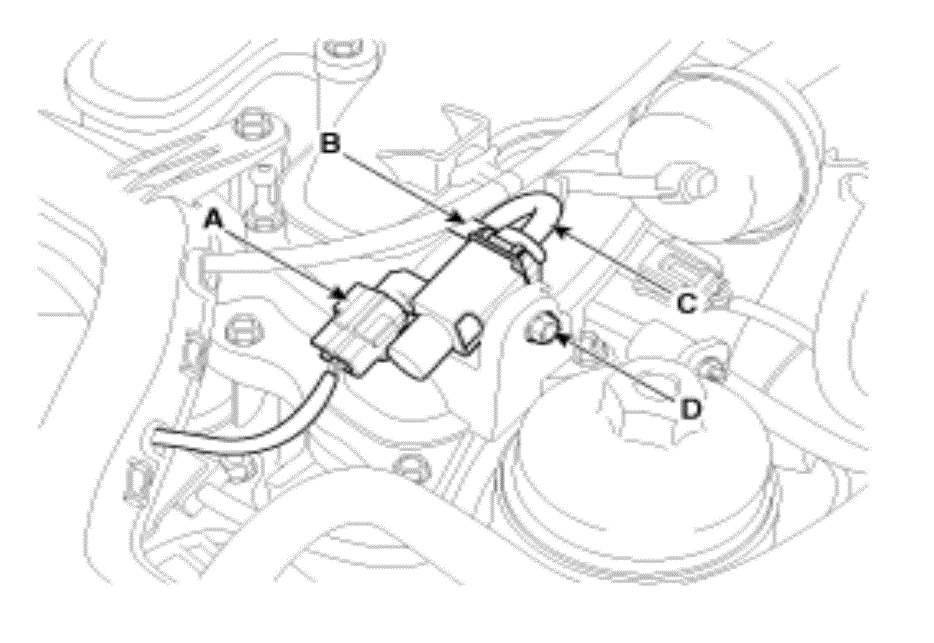

[Valve 1 (Intake manifold)]
Courtesy of HYUNDAI MOTOR AMERICA

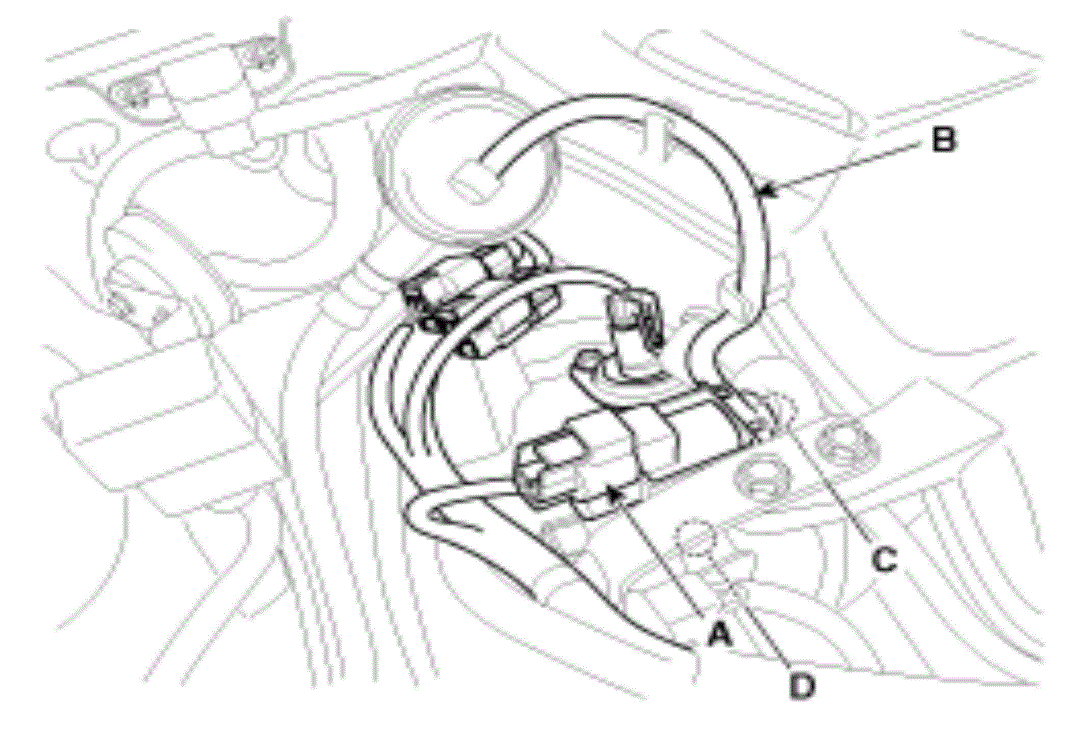

[Valve 2 (Surge tank)]
