2014 Hyundai Azera BaseFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Installation
- Install the jack to the edge of upper oil pan to support the engine.NOTE: Insert the rubber block between jack and upper oil pan.

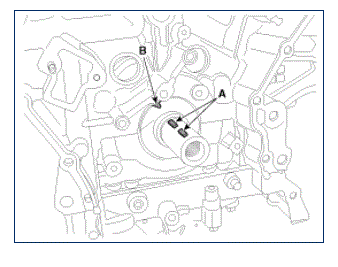

- The key (A) of crankshaft should be aligned with the timing mark (B) of block. As a result of this, the piston of No. 1 cylinder is placed at the top dead center on compression stroke.
- Install the tensioner adapter assembly (A).

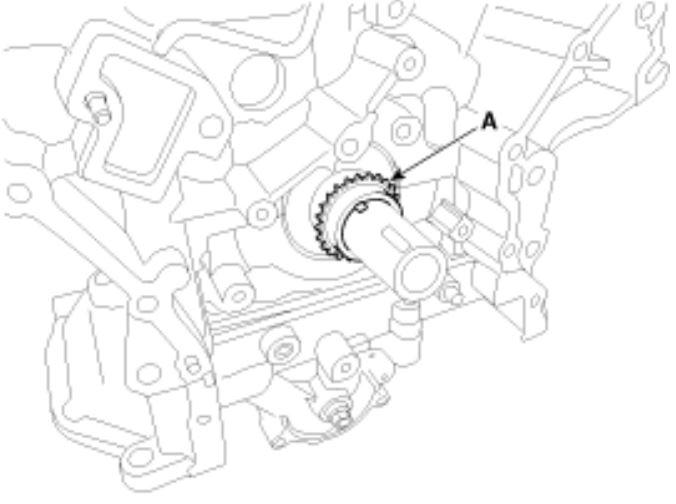

- Install the crankshaft sprocket (A). (LH camshaft drive).

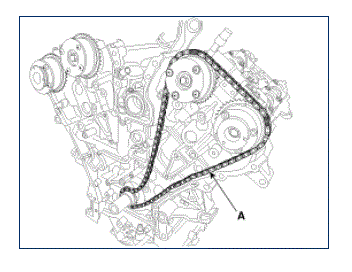

- Install the LH timing chain (A).
