Repair Procedures: Installation

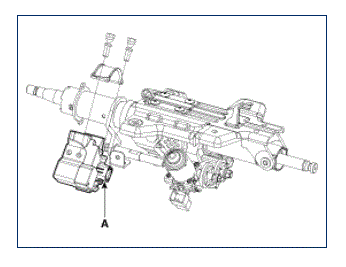

- Install the electronic steering column lock (A).CAUTION: Do not reuse the shear bolts.
When installing the new shear bolts to the electronic steering column lock, tighten the shear bolts until its head is cut off.Tightening torque:
7 ~ 13 N.m (0.7 ~ 1.3 kgf.m, 5 ~ 9.4 lb.ft)
- Install the steering column.
- Install the crash pad lower panel.
