2013 Hyundai Tucson GL, Automatic TransFACTORY OEM SERVICE PROCEDURE

Console Assembly Replacement

NOTE:
  • When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  1. Remove the knob (A).
    Fig 1: Removing Knob
    G06873361Courtesy of HYUNDAI MOTOR CO.
  2. Using a screwdriver, remove the floor console tray (A).
    Fig 2: Identifying Floor Console Tray
    G06873362Courtesy of HYUNDAI MOTOR CO.
  3. Using a screwdriver, remove the floor console bezel (A).
    Fig 3: Identifying Floor Console Bezel
    G06873363Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the connectors (B).
    Fig 4: Identifying Electrical Connectors
    G06873364Courtesy of HYUNDAI MOTOR CO.
  5. Using a screwdriver, remove the console upper cover (A).
    Fig 5: Identifying Console Upper Cover
    G06873365Courtesy of HYUNDAI MOTOR CO.
  6. Disconnect the connector (B).
    Fig 6: Identifying Electrical Connector
    G06873366Courtesy of HYUNDAI MOTOR CO.
  7. Remove the console tray mat (A).
    Fig 7: Identifying Console Tray Mat
    G06873367Courtesy of HYUNDAI MOTOR CO.
  8. Remove the extension side cover (A).
    Fig 8: Identifying Extension Side Cover
    G06873368Courtesy of HYUNDAI MOTOR CO.
  9. After loosening the mounting bolts and screws, then remove the floor console assembly (A).

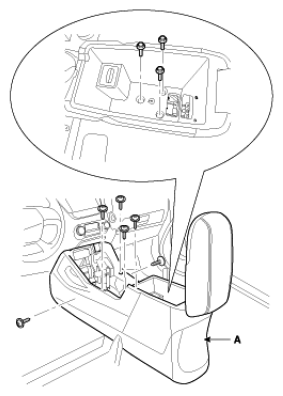

    Fig 9: Identifying Floor Console Assembly
    G06873369Courtesy of HYUNDAI MOTOR CO.
  10. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
    • Replace any damage clips.
