2013 Hyundai Santa Fe XL PremiumFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the air intake hose.
(Refer to "AIR CLEANER ")

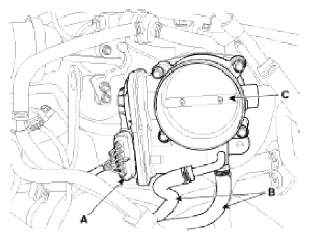

- Disconnect the ETC module connector (A).
- Disconnect the coolant hoses (B).
- Remove the installation bolts, and then remove the ETC module (C) from the engine.
