Repair Procedures: Installation
- Install the timing chain cover.
- The sealant locations on chain cover and on counter parts (cylinder head, cylinder block, and lower oil pan) must be free of engine oil and etc.

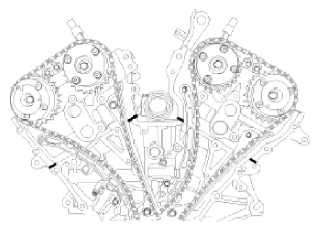

- Before assembling the timing chain cover, the liquid sealant THREE BOND 1217H (Hyundai Gray RTV) should be applied on the gap between cylinder head and cylinder block. The part must be assembled within 5 minutes after sealant was applied.
Bead width : 2.5 mm (0.1 in.)

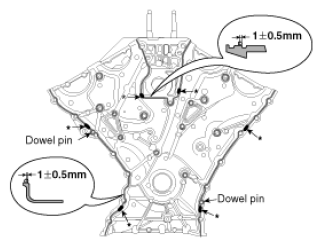

- After applying liquid sealant THREE BOND 1217H (Hyundai Gray RTV) on timing chain cover. The part must be assembled within 5 minutes after sealant was applied.
Sealant should be applied without discontinuity.
