2013 Hyundai Santa Fe XL PremiumFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the driver crash pad lower panel.
Refer to CRASH PAD LOWER PANEL .

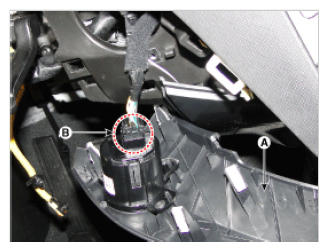

- Disconnect the start/stop button connector (B) after removing the center fascia garnish (A).

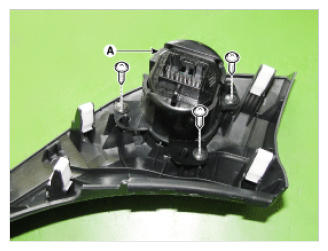

- Remove the start/stop button (A) after removing the screws (3EA).
