2013 Hyundai Santa Fe XL PremiumFACTORY OEM SERVICE PROCEDURE

Repair Procedures: Replacement

CAUTION:
  • Put on gloves to protect your hands.

Information

  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the console front complete assembly.

    Refer to FLOOR CONSOLE ASSEMBLY .

  2. Remove the crash pad lower panel.

    Refer to CRASH PAD LOWER PANEL .

  3. Remove the glove box housing.

    Refer to GLOVE BOX HOUSING .

  4. Remove the heater control unit.

    Refer to HEATER & AC CONTROL UNIT (MANUAL) .

    Refer to HEATER & AC CONTROL UNIT (DATC) .

  5. After loosening the mounting screw, then remove the crash pad garnish [LH] (A).

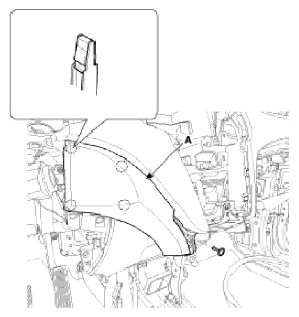

    Fig 1: Removing RH Crash Pad Garnish Mounting Screws Using Screwdriver
    G09264492Courtesy of HYUNDAI MOTOR AMERICA
  6. After loosening the mounting screws, then remove the center crash pad cover (A).

    [LH]

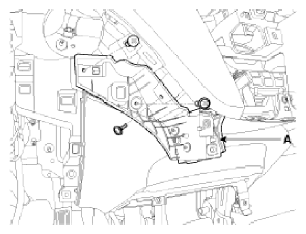

    Fig 2: Removing LH Crash Pad Garnish Mounting Screws Using Screwdriver
    G09264493Courtesy of HYUNDAI MOTOR AMERICA

    [RH]

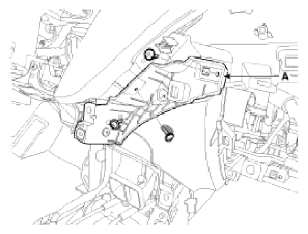

    Fig 3: Removing RH Crash Pad Garnish Mounting Screws Using Screwdriver
    G09264494Courtesy of HYUNDAI MOTOR AMERICA
  7. After loosening the mounting screws, then remove the crash pad center lower panel (A).

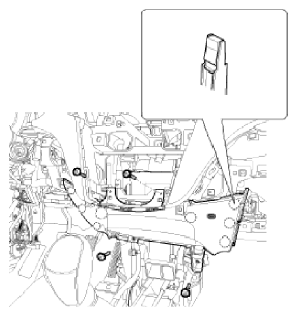

    Fig 4: Removing Crash Pad Center Lower Panel Mounting Screws Using Screwdriver
    G09264495Courtesy of HYUNDAI MOTOR AMERICA
  8. Disconnect the console under lamp connector (A).

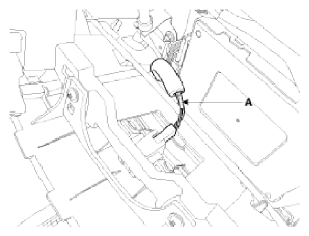

    Fig 5: Identifying Console Under Lamp Connector
    G09264496Courtesy of HYUNDAI MOTOR AMERICA
  9. Install in the reverse order of removal.

    Information

    • Make sure the connector are connected in properly.
    • Replace any damaged clips.
