PTG Unit

Fig 1: Identifying Power Liftgate Unit
Courtesy of HYUNDAI MOTOR AMERICA

PTG unit is located in rear left luggage side trim.

PTG drive unit drive the two actuators (Spindles) by measuring the driving motors.

PTG unit also controls anti trap functions by hall sensor analysis in the anti-pinch strip.
PTG Latch Assembly

Fig 2: Identifying Power liftgate Latch Assembly
Courtesy of HYUNDAI MOTOR AMERICA

PTG latch assembly is consist of Power Latch (A) and Power Closing Unit (B).

Power latch is located in the lower part of tail gate panel.
PTG Spindle

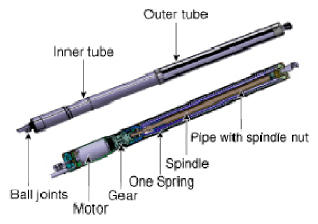

Fig 3: Identifying Power liftgate Spindle Related Components
Courtesy of HYUNDAI MOTOR AMERICA

PTG spindle open and close the liftgate by driving the motor.
Anti-Pinch Strip

Fig 4: Identifying Anti-Pinch Strip
Courtesy of HYUNDAI MOTOR AMERICA

During power closing or cinching, the PTG system shall reverse to full open if an anti-pinch strip signal is received. However, the anti-pinch strips will not work when the liftgate is idle in the full closed, full open, or stopped positions.
SMK (Smart key)

Fig 5: Identifying SMK (Smart Key)
Courtesy of HYUNDAI MOTOR AMERICA

Push the power liftgate open of the SMK more than 0.5s to open the power liftgate. Power Open operation shall be reversed when an additional Open/Close signal is received during power opening.
Interrior Switch

Fig 6: Identifying Interrior Swtich
Courtesy of HYUNDAI MOTOR AMERICA
liftgate inner switch

Fig 7: Identifying liftgate Inner Switch
Courtesy of HYUNDAI MOTOR AMERICA
liftgate buzzer

Fig 8: Identifying liftgate Buzzer And Related Components
Courtesy of HYUNDAI MOTOR AMERICA

When a power operation cannot be performed as requested or an obstacle has been detected.

When to See a Mechanic

Stop DIY work and contact a certified mechanic immediately if any of the following apply:
