Repair Procedures: Inspection

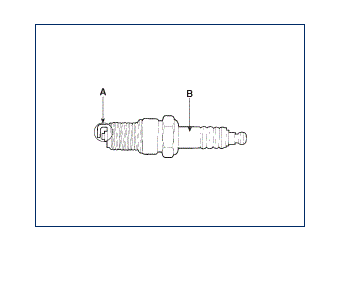

- Inspect the electrodes (A) and ceramic insulator (B).INSPECTION OF ELECTRODES
Condition Dark deposits White deposits Description - Fuel mixture too rich
- Low air intake
- Fuel mixture too lean
- Advanced ignition timing
- Insufficient plug tightening torque

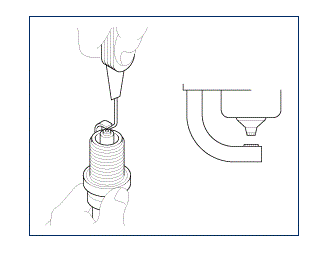

- Check the electrode gap (A).
Standard:
1.0 ~ 1.1 mm (0.0394 ~ 0.0433 in.)
