2013 Hyundai AzeraFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.
- Remove the crash pad lower panel.
(Refer to "CRASH PAD LOWER PANEL ")
- Remove the Reinforcing panel after loosening the mounting bolt and nut.
(Refer to "CRASH PAD LOWER PANEL ")

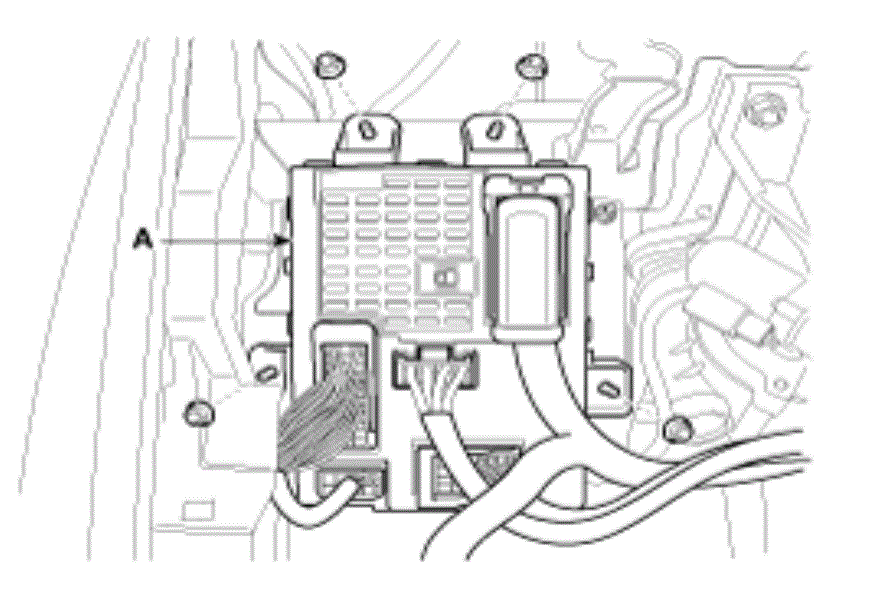

- Disconnect the IPM connectors, loosening the nuts (4EA).
- Disconnect the rear connector, and then remove the IPM.
