2013 Hyundai AzeraFACTORY OEM SERVICE PROCEDURE

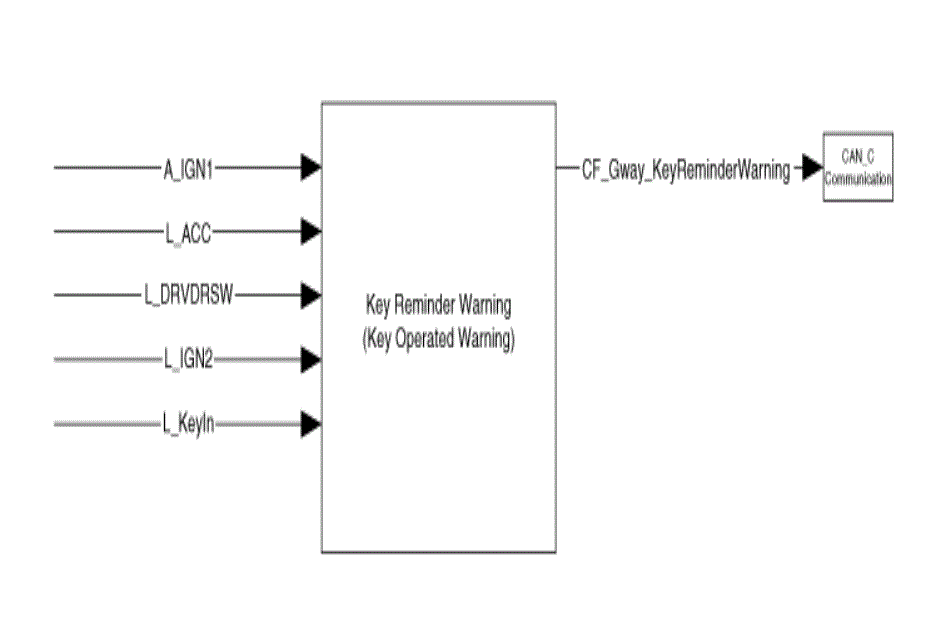

Key Reminder Warning (Key Operated Warning)
If driver opens the driver side door and go away from the car during key is inserted or ACC state, a sound warning reminds a driver that key has to be taken off or ACC state has to be changed to Off state.
| Function | Characteristics | Name | |
|---|---|---|---|
| Signal Label | Spec. Designation | ||
| Input | Logic | L_ACC | Accessory Signal |
| L_DRVDRSW | Driver Door Switch status | ||
| L_IGN2 | Ignition 2 Signal | ||
| L_KeyIn | Key In signal | ||
| Analog | A_IGN1 | Ignition 1 Signal | |
| Output | CAN_C Communication | CF_Gway_KeyReminderWarning | Internal Warning Buzzer command for Key Reminder Warning |
