2012 Hyundai Veracruz GLS, FWDFACTORY OEM SERVICE PROCEDURE

Repair procedures (F21): Removal

Disconnect the (-) terminal from the battery.
Remove the air cleaner assembly.
Remove the turbocharger tube. (diesel engine only)
Remove the shift cable (A), the manual lever (B), and the connector (C).

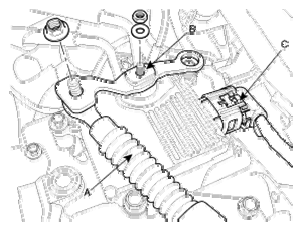

Fig 1: Identifying Shift Cable, Manual Lever, And Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the 3 bolts to remove the TCU (A).

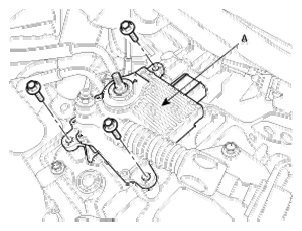

Fig 2: Identifying TCU
Courtesy of HYUNDAI MOTOR CO.
