2012 Hyundai Veracruz GLS, FWDFACTORY OEM SERVICE PROCEDURE

Repair procedures (F21): Removal

Drain the oil by removing the overflow plug and the O-ring using a torx wrench (T40), and the drain plug (A) and the gasket by using a hexagon wrench (17mm).

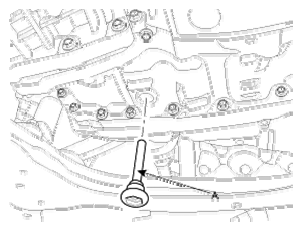

Fig 1: Identifying Drain Plug
Courtesy of HYUNDAI MOTOR CO.
Disconnect the oil cooler hoses from the tubes.
Remove the 2 bolts to remove the oil cooler tubes (A) and the O-rings.

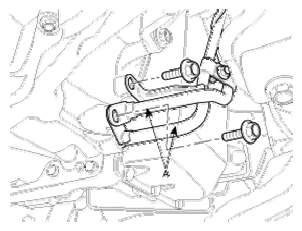

Fig 2: Identifying Oil Cooler Tubes
Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle side cover and the valve body assembly. (Refer to REMOVAL )
CAUTION: Be careful not to drop the valve body assembly.
Remove the input speed sensor (A).

Fig 3: Identifying Input Speed Sensor
Courtesy of HYUNDAI MOTOR CO.
