2012 Hyundai Veracruz GLS, FWDFACTORY OEM SERVICE PROCEDURE
Repair procedures (F21): Installation
- Install the input speed sensor (A).
- Install the transaxle side cover and the valve body assembly. (Refer to
INSTALLATION
)CAUTION: Be careful not to drop the valve body assembly.

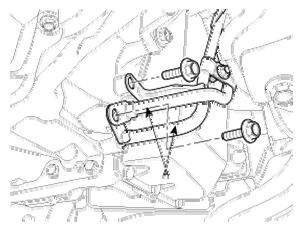

- Coat the new O-rings with ATF, and install it to the oil cooler tubes (A). Install the oil cooler tubes with the 2 bolts.
O-ring size: inner dia.-11.6mm, thickness-2.35mm
Tightening torque :
20-30 Nm (2.0-3.0kgf.m, 14.5-21.7 lb-ft)
Bolt size (8) : M8x1.25x20mm
- Connect the oil cooler hoses from the tubes.

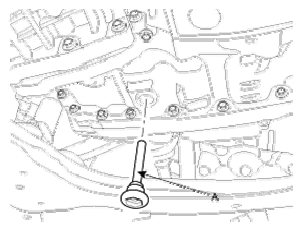

- Install the drain plug (A) and the gasket by using a hexagon wrench (17mm).
Tightening torque :
35-61 Nm (3.5-6.1kgf.m, 25.3-44.1 lb-ft)
- Refill the ATF. (Refer to PROCEDURE OF ATF LEVEL ADJUSTING )
