2012 Hyundai Veloster Standard TransFACTORY OEM SERVICE PROCEDURE

Shift Lever Assembly Replacement

Remove the floor Interior console assembly.
(Refer to "INTERIOR (CONSOLE) ")

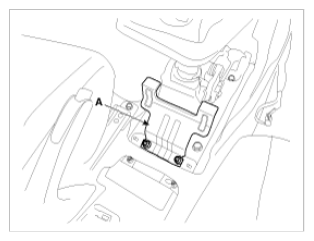

Remove the cover (A).

Fig 1: Identifying Floor Interior Console Assembly Cover
Courtesy of HYUNDAI MOTOR AMERICA

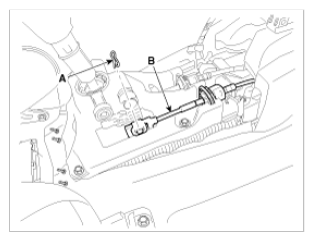

Remove the select cable (B) by removing the snap pin (A).

Fig 2: Identifying Select Cable And Snap Pin
Courtesy of HYUNDAI MOTOR AMERICA

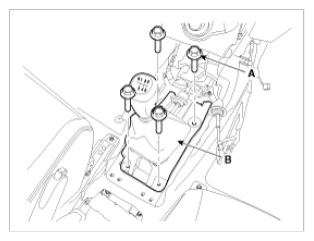

Remove the shift lever assembly (B) by removing the bolts (A-4ea).
Tightening torque:

9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 14.5 lb-ft)

Fig 3: Identifying Shift Lever Assembly And Mounting Bolts (4EA)
Courtesy of HYUNDAI MOTOR AMERICA

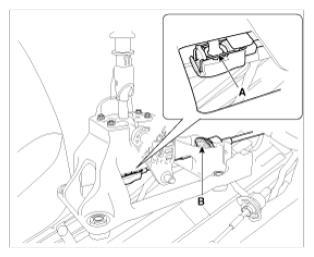

Remove the shift cable (B) by removing the clip (A).

Fig 4: Identifying Shift Cable And Clip
Courtesy of HYUNDAI MOTOR AMERICA
