Select/Shift Cable Replacement
- Remove the floor Interior console assembly.
(Refer to "INTERIOR (CONSOLE) ")

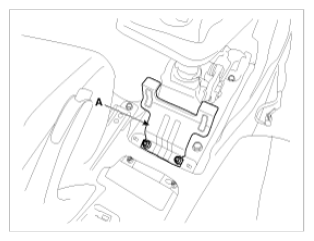

- Remove the cover (A).

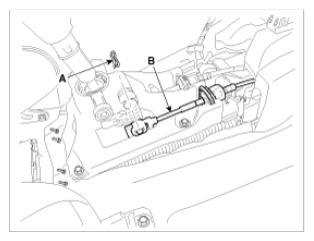

- Remove the select cable (B) by removing the snap pin (A).

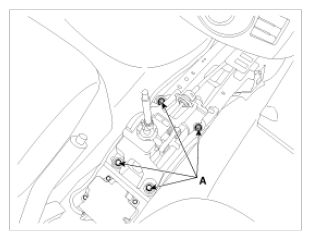

- Remove the shift lever assembly (B) by removing the bolts (A-4ea).
Tightening torque:
9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 14.5 lb-ft)

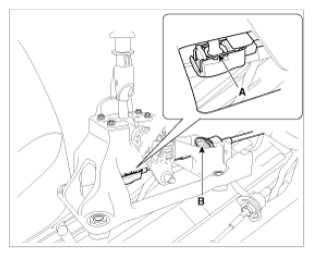

- Remove the shift cable (B) by removing the clip (A).
