PDM Diagnosis With GDS
- It will be able to diagnose defects of Smart key with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
- Select model and "Smart key system (Button start)" menu if you want to check PDM.

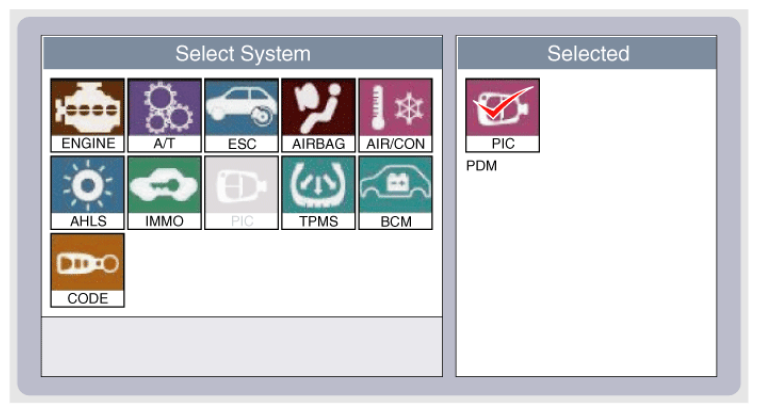

- Select "PDM" in the menu.

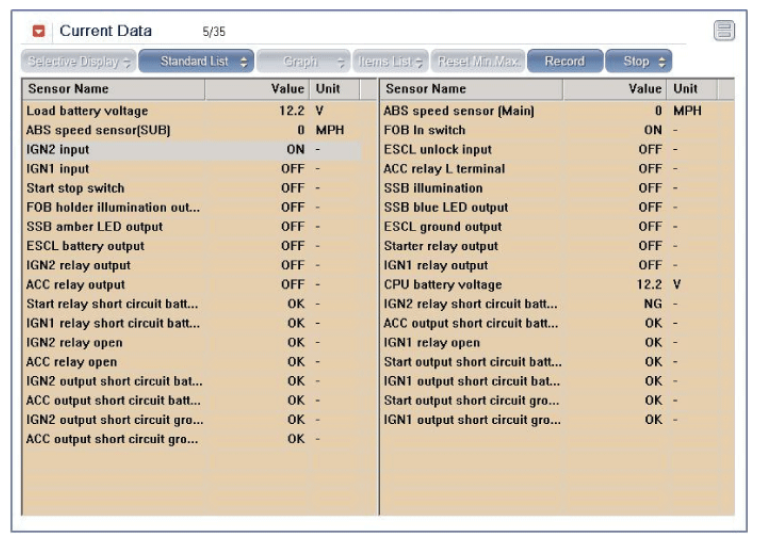

- Select "Current Data", if you want to check current data of PDM.
It provides the input/output status of each module.

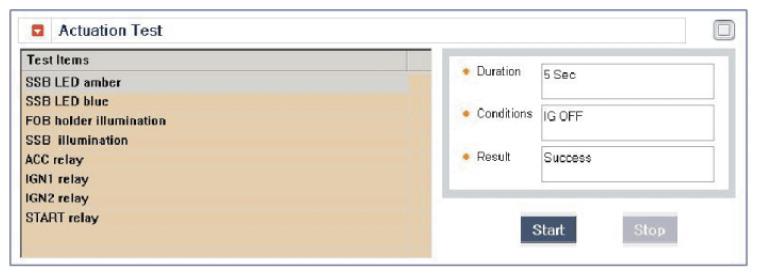

- If you want to check PDM data operation forcefully, select "Actuation test".
