2012 Hyundai Tucson GL, Automatic TransFACTORY OEM SERVICE PROCEDURE

Power Windows: Troubleshooting

No windows operate from the main switch on the driver's door.

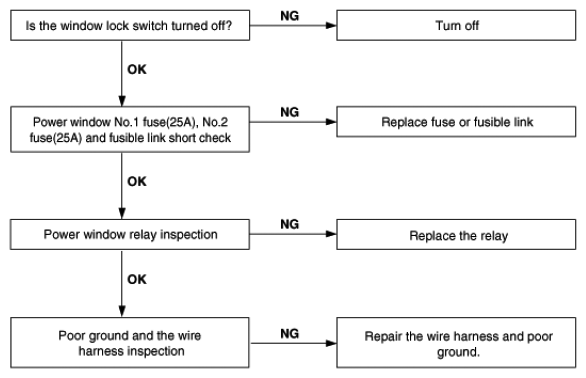

Fig 1: Power Window Troubleshooting Chart (Windows Not Operating From Main Switch On Driver's Door)
Courtesy of HYUNDAI MOTOR CO.
Driver's side window does not operate.

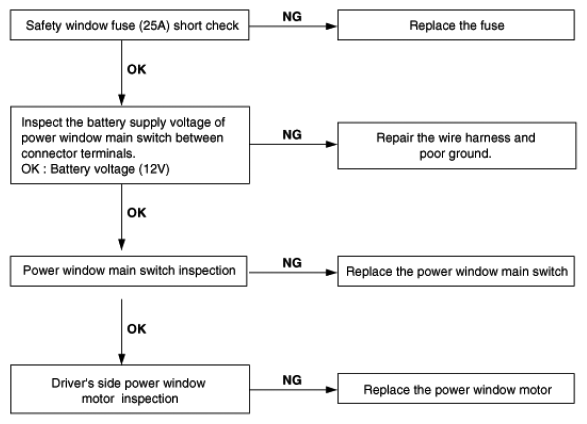

Fig 2: Power Window Troubleshooting Chart (Driver's Side Window Not Operating)
Courtesy of HYUNDAI MOTOR CO.
Passenger's side window does not operate.

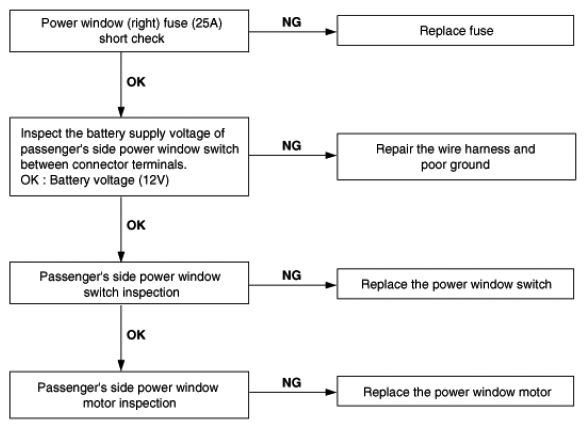

Fig 3: Power Window Troubleshooting Chart (Passenger's Side Window Not Operating)
Courtesy of HYUNDAI MOTOR CO.
