2012 Hyundai Tucson AWD L4-2.4LFACTORY OEM SERVICE PROCEDURE
Repair Procedures
Replacement
1. Remove the lower panel.
2. Remove the IPM.
3. Remove the parking brake pedal.

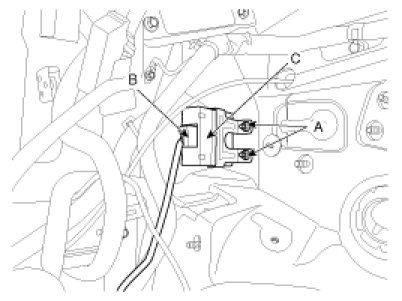

4. Remove the 4WD ECU(C) after removing the nut (A-2ea) and the connector (B).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)
