2012 Hyundai Equus V8-5.0LFACTORY OEM SERVICE PROCEDURE
Fuel Level Sensor: Service and Repair
Removal
1. Preparation
(1) Remove the rear seat cushion .

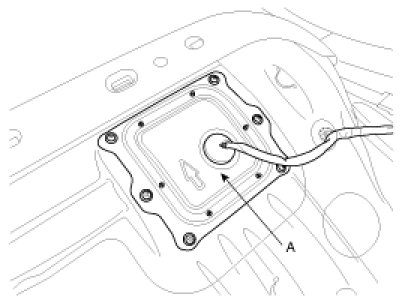

(2) Remove the service cover of the fuel pump (A).
(3) Disconnect the fuel pump connector (A).
(4) Idle the engine and wait until fuel in feed line is exhausted.
(5) After engine stops, turn the ignition switch OFF.
2. Remove the service cover of the sub fuel sender (A).
3. Disconnect the sub fuel sender connector (A).
4. Remove the sub fuel sender from the fuel tank after removing the installation bolts (B).
Installation
1. Installation is reverse of removal.
Sub fuel sender installation bolt :
2.0 - 2.9 N.m (0.2 - 0.3 kgf.m, 1.4 - 2.2 lbf.ft)
CAUTION:
When installing the sub fuel sender, be careful not to get the seal-ring entangled.
