2012 Hyundai Equus SignatureFACTORY OEM SERVICE PROCEDURE
Rear Console Assembly Replacement
CAUTION:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
- Take care not to bend or scratch the trim and panels.
- Remove the rear seat assembly.
(Refer to the "REAR SEAT ")

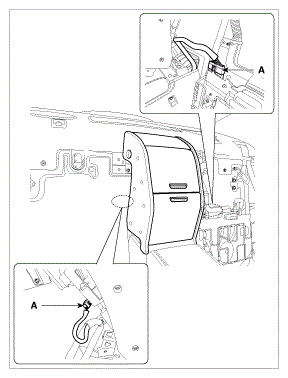

- Disconnect the connector (A).
- Remove the cap (B).
- After loosening the mounting bolts, then remove the rear tower console complete assembly (A).
- Using a screwdriver or remover, remove the nozzle assembly (A).
- After loosening the mounting bolts, then remove the rear floor console complete assembly (A).
- Installation is the reverse of removal.CAUTION:
- Make sure the connector is plugged in properly.
- Replace any damage clips.
