2012 Hyundai Elantra GLS, Automatic TransFACTORY OEM SERVICE PROCEDURE
Repair Procedures: Removal
- Make sure vehicle does not roll before setting room side shift lever and T/M side manual control lever to "N" position.
- Remove the battery and the battery tray. (Refer to "CHARGING SYSTEM ".)
- Remove the air cleaner assembly. (Refer to "INTAKE MANIFOLD ".)

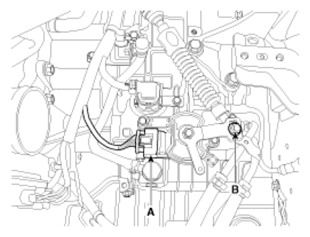

- Remove the shift cable mounting nut (B).
Tightening torque:
7.8 ~ 11.8 N.m (0.8 ~ 1.2 Kgf.m, 5.7 ~ 8.6 lb-ft)
- Disconnect the inhibitor switch connector (A).

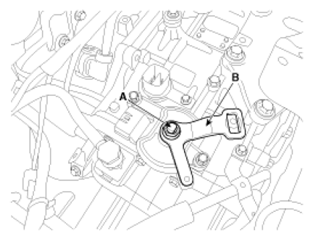

- Remove the manual control lever (B) and the washer after removing a nut (A).
